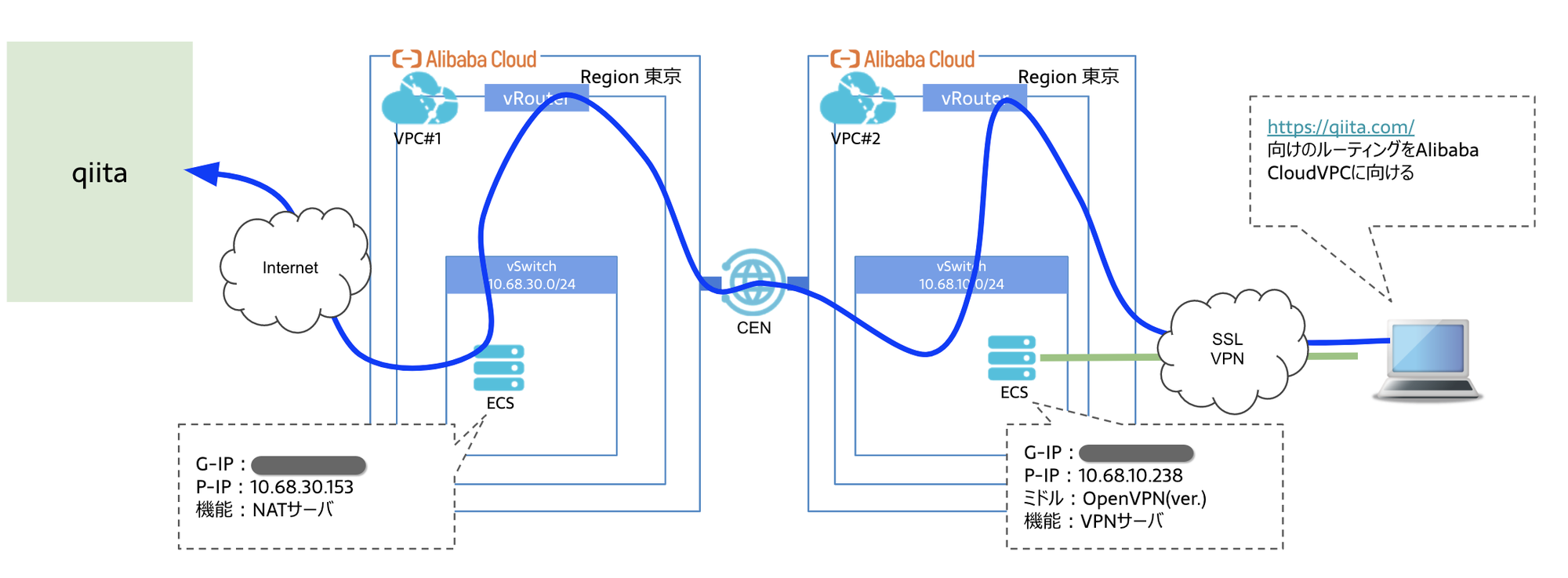

OpenVPNとVPC（RouteTable）の設定だけで特定ドメインのみAlibabaCloudにルーティングさせるNW構成を作る

[root@openvpn]# grep '^[^#]' 'server_r.conf
port 1194
proto udp
dev tun
ca /etc/openvpn/easy-rsa/pki/ca.crt
cert /etc/openvpn/easy-rsa/pki/issued/server_r.crt
key /etc/openvpn/easy-rsa/pki/private/server_r.key  # This file should be kept secret
dh /etc/openvpn/easy-rsa/pki/dh.pem
server 10.8.0.0 255.255.255.0
ifconfig-pool-persist ipp.txt
push "route 13.112.0.0 255.252.0.0"

# firewall-cmd --zone=external --change-interface=eth0 --permanent
success

# firewall-cmd --zone=external --add-masquerade --permanent
success

# firewall-cmd --reload
success

# systemctl enable firewalld

# systemctl start firewalld

# systemctl status firewalld
irewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; enabled; vendor preset: enabled)
   Active: active (running) since 木 2019-11-28 08:00:13 CST; 10h ago
     Docs: man:firewalld(1)
 Main PID: 542 (firewalld)
   CGroup: /system.slice/firewalld.service
           └─542 /usr/bin/python2 -Es /usr/sbin/firewalld --nofork --nopid

11月 28 08:00:13 nginx02 systemd[1]: Starting firewalld - dynamic firewall daemon...
11月 28 08:00:13 nginx02 systemd[1]: Started firewalld - dynamic firewall daemon.
11月 28 18:02:38 nginx02 firewalld[542]: WARNING: ALREADY_ENABLED: masquerade

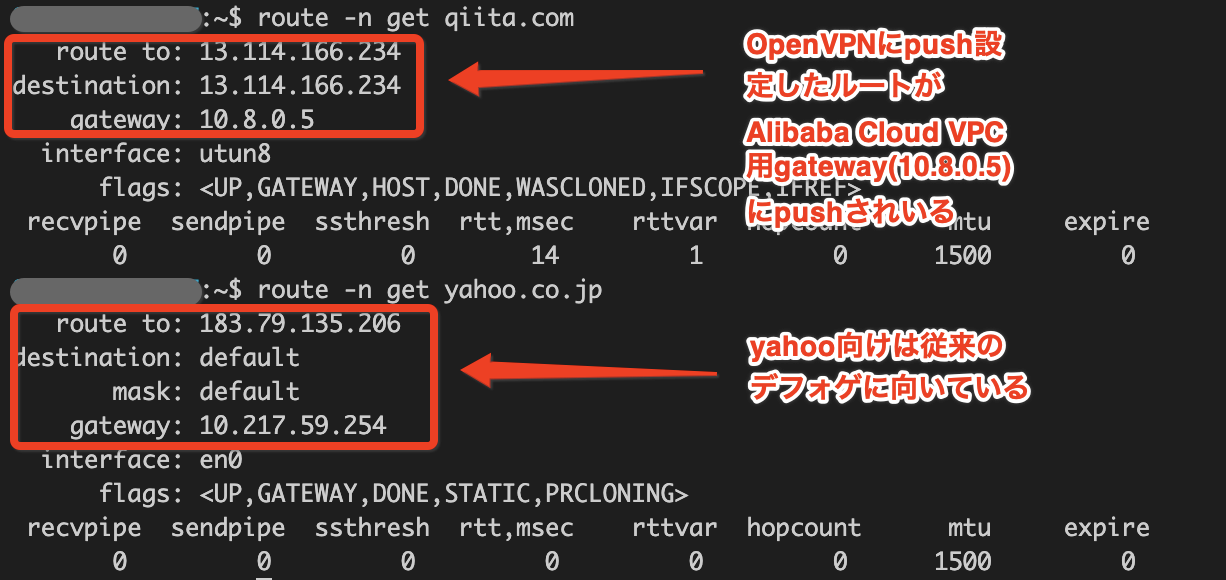

User:~$ ifconfig | grep 10.8
        inet 10.8.0.6 --> 10.8.0.5 netmask 0xffffffff

User:~$ netstat -rn | grep 13.112/14
13.112/14          10.8.0.5           UGSc         utun8
