Google Kubernetes Engine(GKE)を使ってNextCloudをデプロイしてみた ※構築手順付き

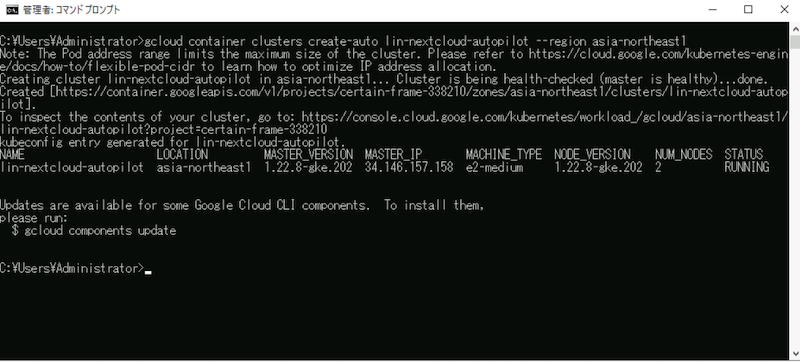

$ gcloud container clusters create-auto lin-nextcloud-autopilot --region asia-northeast1

$ gcloud container clusters get-credentials lin-nextcloud-autopilot --region asia-northeast1

$ kubectl create secret tls sbcicp1.net --cert sbcicp1.net.pem --key sbcicp1.net.key

```
apiVersion: v1
kind: Service
metadata:
  name: nextcloud
  labels:
    app: nextcloud
  annotations:
    cloud.google.com/backend-config: '{"default": "http-hc-config"}'
spec:
  ports:
  - port: 80
    targetPort: 80
  selector:
    app: nextcloud
    tier: frontend
  type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nextcloud
  labels:
    app: nextcloud
spec:
  selector:
    matchLabels:
      app: nextcloud
      tier: frontend
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: nextcloud
        tier: frontend
    spec:
      containers:
      - image: nextcloud:latest
        name: nextcloud
        env:
        - name: OVERWRITEHOST
          value: albnextcloud.sbcicp1.net
        - name: OVERWRITEPROTOCOL
          value: https
        - name: PHP_MEMORY_LIMIT
          value: 20480M
        - name: PHP_UPLOAD_LIMIT
          value: 20480M
        ports:
        - containerPort: 80
          name: nextcloud
        volumeMounts:
        - name: nextcloud-ps
          mountPath: /var/www/html
      volumes:
      - name: nextcloud-ps
        persistentVolumeClaim:
          claimName: pvc-demo
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: my-mc-ingress
spec:
  tls:
  - secretName: sbcicp1.net
  rules:
  - host: albnextcloud.sbcicp1.net
    http:
      paths:
      - pathType: ImplementationSpecific
        backend:
          service:
            name: nextcloud
            port:
              number: 80
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-demo
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 30Gi
---
apiVersion: cloud.google.com/v1
kind: BackendConfig
metadata:
  name: http-hc-config
spec:

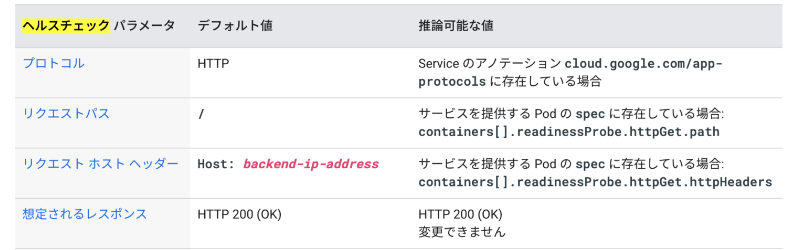

  healthCheck:
    checkIntervalSec: 15
    port: 80
    type: HTTP
    requestPath: /core/img/favicon-touch.png
```

$ kubectl apply -f https.yaml

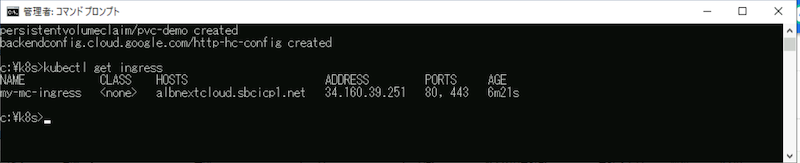

$ kubectl get ingress

```
apiVersion: v1
kind: Service
metadata:
  name: nextcloud
  labels:
    app: nextcloud
  annotations:
    cloud.google.com/backend-config: '{"default": "http-hc-config"}'
spec:
  ports:
  - port: 80
    targetPort: 80
  selector:
    app: nextcloud
    tier: frontend
  type: NodePort
```

```
from diagrams import Cluster, Diagram, Node, Edge
from diagrams.k8s.compute import Pod
from diagrams.gcp.compute import KubernetesEngine
from diagrams.gcp.network import LoadBalancing
from diagrams.onprem.network import Internet
from diagrams.onprem.client import Client
from diagrams.onprem.client import Users
from diagrams.custom import Custom

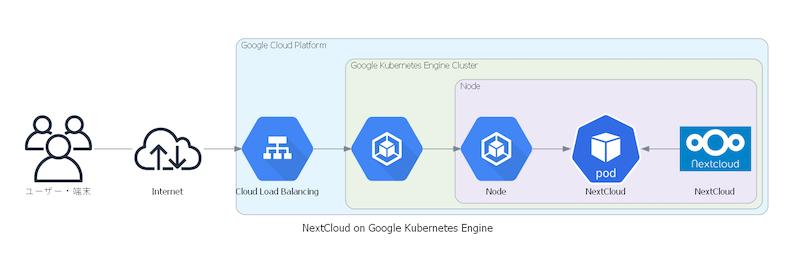

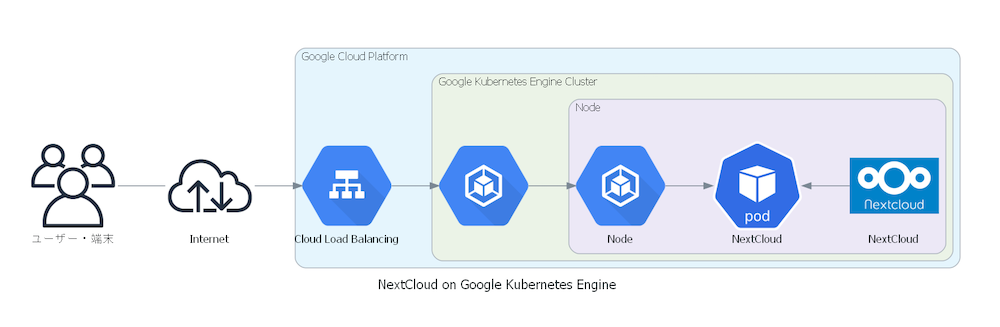

with Diagram("NextCloud on Google Kubernetes Engine", show=True):

    internet_01 = Internet("Internet")
    users_01 = Users("ユーザー・端末")

    with Cluster("Google Cloud Platform"):

        gcp_lb = LoadBalancing("Cloud Load Balancing")


        with Cluster("Google Kubernetes Engine Cluster"):
            myapp_ing = KubernetesEngine("")
            with Cluster("Node"):
                myapp_node = KubernetesEngine("Node")
                myapp_pods = Pod("NextCloud")

                cc_nextcloud = Custom("NextCloud", "./Custom/nextcloud.png")

    users_01 - internet_01 >> Edge(headport="c", tailport="c", minlen="1", lhead='cluster_Kubernetes') >> gcp_lb
    gcp_lb >> Edge(headport="c", tailport="c", minlen="1", lhead='cluster_MyApp') >> myapp_ing >> Edge(headport="c", tailport="c", minlen="1", lhead='cluster_MyApp pods') >> myapp_node >> myapp_pods << cc_nextcloud

```
