Alibaba CloudのサーバレスKubernetesを使ってOnlyOfficeをデプロイし、Nextcloudと連携してみた※構築手順付き

apiVersion: alibabacloud.com/v1

kind: AlbConfig

metadata:

  name: default

spec:

  config:

name: alb-nextcloud

addressType: Internet

zoneMappings:

- vSwitchId: vsw-6wesjvmih2algpwqk4q70

- vSwitchId: vsw-6we735r6gd2x9ycf64ior

---

apiVersion: networking.k8s.io/v1

kind: IngressClass

metadata:

  name: alb

spec:

  controller: ingress.k8s.alibabacloud/alb

  parameters:

apiGroup: alibabacloud.com

kind: AlbConfig

name: default

---

apiVersion: v1

kind: Service

metadata:

  name: nextcloud

  labels:

app: nextcloud

spec:

  ports:

  - port: 80

targetPort: 80

  selector:

app: nextcloud

tier: frontend

  type: NodePort

---

apiVersion: apps/v1

kind: Deployment

metadata:

  name: nextcloud

  labels:

app: nextcloud

spec:

  selector:

matchLabels:

  app: nextcloud

  tier: frontend

  strategy:

type: Recreate

  template:

metadata:

  labels:

    app: nextcloud

    tier: frontend

spec:

  volumes:

  - name: configmap

    configMap:

      name: reverse-proxy

      items:

      - key: reverse-proxy.config.php

        path: reverse-proxy.config.php

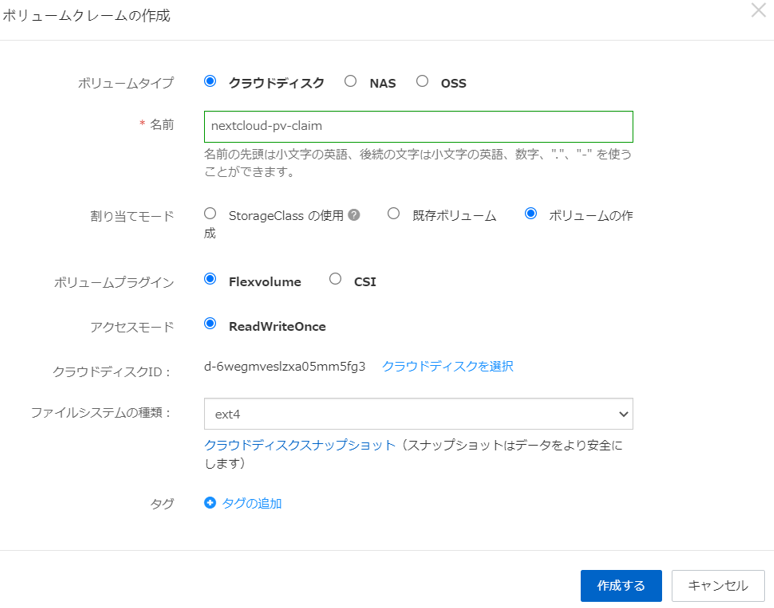

  - name: nextcloud-ps

    persistentVolumeClaim:

      claimName: nextcloud-pv-claim

  containers:

  - image: nextcloud:latest

    name: nextcloud

    env:

    - name: OVERWRITEHOST

      value: k8s2nextcloud.sbcicp1.net

    - name: OVERWRITEPROTOCOL

      value: https

    - name: PHP_MEMORY_LIMIT

      value: 20480M

    - name: PHP_UPLOAD_LIMIT

      value: 20480M

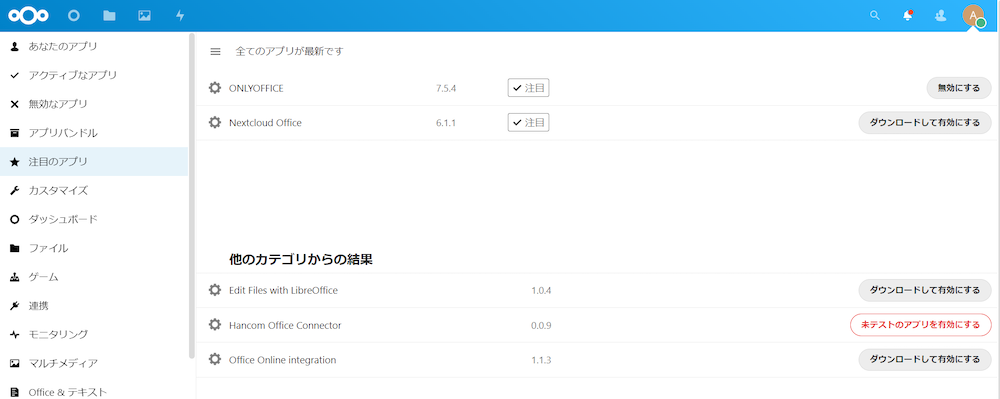

    - name: ONLYOFFICE

      value: "true"

    ports:

    - containerPort: 80

      name: nextcloud

    volumeMounts:

    - name: configmap

      mountPath: /var/tmp

    - name: nextcloud-ps

      mountPath: /var/www/html

    lifecycle:

      postStart:

        exec:

          command: ['sh', '-c', 'cp -f /var/tmp/reverse-proxy.config.php /var/www/html/config/reverse-proxy.config.php']

---

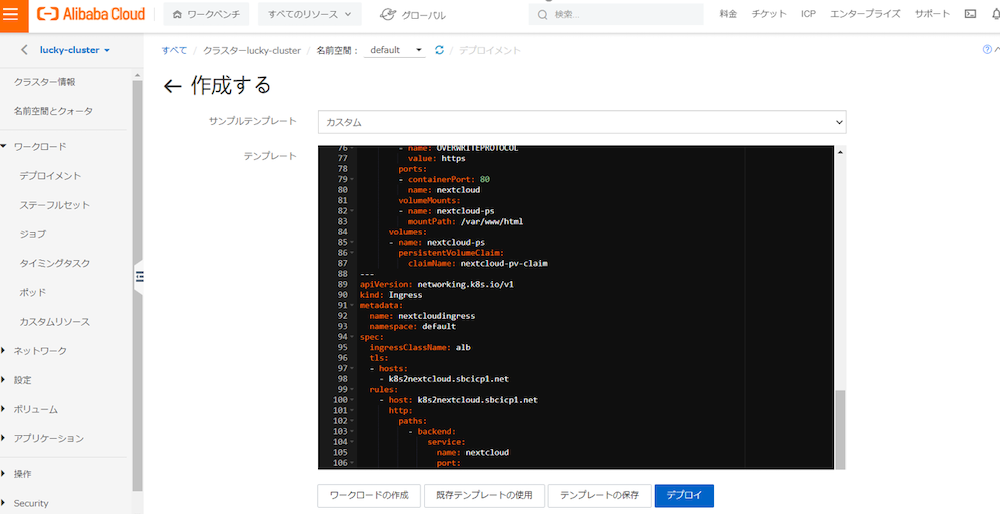

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

  name: nextcloudingress

  namespace: default

spec:

  ingressClassName: alb

  tls:

  - hosts:

- k8s2nextcloud.sbcicp1.net

  rules:

- host: k8s2nextcloud.sbcicp1.net

  http:

    paths:

      - backend:

          service:

            name: nextcloud

            port:

              number: 80

        path: /

        pathType: Prefix

---

apiVersion: v1

kind: ConfigMap

metadata:

    name: reverse-proxy

data:

  reverse-proxy.config.php: |

    <?php

    $overwriteHost = getenv('OVERWRITEHOST');

    if ($overwriteHost) {

      $CONFIG['overwritehost'] = $overwriteHost;

    }





    $overwriteProtocol = getenv('OVERWRITEPROTOCOL');

    if ($overwriteProtocol) {

      $CONFIG['overwriteprotocol'] = $overwriteProtocol;

    }





    $overwriteCliUrl = getenv('OVERWRITECLIURL');

    if ($overwriteCliUrl) {

      $CONFIG['overwrite.cli.url'] = $overwriteCliUrl;

    }





    $overwriteWebRoot = getenv('OVERWRITEWEBROOT');

    if ($overwriteWebRoot) {

      $CONFIG['overwritewebroot'] = $overwriteWebRoot;

    }





    $overwriteCondAddr = getenv('OVERWRITECONDADDR');

    if ($overwriteCondAddr) {

      $CONFIG['overwritecondaddr'] = $overwriteCondAddr;

    }





    $trustedProxies = getenv('TRUSTED_PROXIES');

    if ($trustedProxies) {

      $CONFIG['trusted_proxies'] = array_filter(array_map('trim', explode(' ', $trustedProxies)));

    }





    $onlyOffice = getenv('ONLYOFFICE');

    if ($onlyOffice) {

      $CONFIG['onlyoffice'] = array (

        'verify_peer_off' => true,

        'jwt_header' => "AuthorizationJwt"

      );

    }
